PRINTINGPLUS: Your Trusted Digital Printing Machine Manufacturer for Digital Printing Solutions Since 2018.

Efficient water transfer printer integrated printing and drying 1

Efficient water transfer printer integrated printing and drying 2

Efficient water transfer printer integrated printing and drying 3

Efficient water transfer printer integrated printing and drying 4

Efficient water transfer printer integrated printing and drying 5

Efficient water transfer printer integrated printing and drying 6

Efficient water transfer printer integrated printing and drying 7

Efficient water transfer printer integrated printing and drying 8

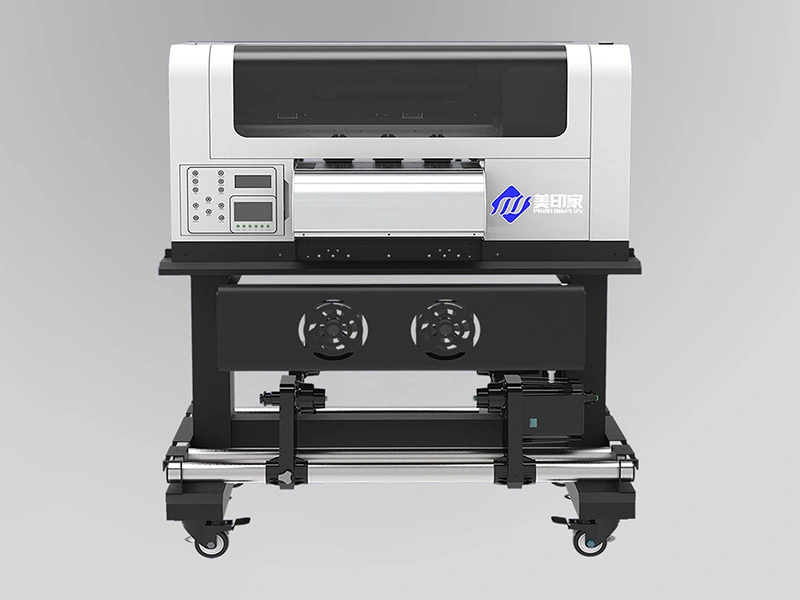

Efficient water transfer printer integrated printing and drying

Size: L1030x W820 x H1240mm

Place of Origin: CHINA

Minimum order quantity: One unit

Color: Black and White

Type of material: Water transfer film

Packing: Wooden case / flight case

Delivery time: 7-15 working days

Model: Inkjet Printer

Transaction mode: T/T

Supply capacity: 200 units per month

Price: Negotiable

Inquiry

Write a Review

Product Details

The principle of water transfer

Water transfer printing is a water-soluble film made of special processing as the medium. After printing the required color pattern on the film, the water-soluble film printed with the pattern is placed on the water surface. Using the action of water pressure, the ink of the color pattern is uniformly transferred and adhered to the surface of the product, and the film is dissolved in water. After cleaning and drying, spray on a layer of transparent protective finish, scratch resistant and fast fading.

Diverse patterns

The water transfer printing machine can achieve various patterns and effects, including wood grain, marble pattern, animal pattern and pattern.

Adaptability

Due to the characteristics of coating technology, printing can be achieved on objects of different shapes and materials, such as plastics, metals, ceramics and glass.

High efficiency

Water transfer printing technology can achieve mass production and improve production efficiency and output.

Environmentally friendly

Water transfer printing uses weak solvents and is environmentally friendly.

Durability

The water transfer pattern has high flatness and fit, can perfectly cover the surface of the object, and has good wear resistance and durability.

Product Highlight

图片10 拷贝

THK linear guide, No noise, smoother operation, longer life, high-precision output printing.

图片11 拷贝

Printing and drying integrated design, convenient and fast, safe and efficient, so that the printing dry carefree.

图片12 拷贝

lack of ink alarm system, prevent the nozzle dry beating, reduce losses, reduce costs.

Product parameter

Print head	EPSON-1600E1
Print Accuracy/speed	4pass:8m²/hour 6pass:5m²/hour 8pass:3m²/hour
Maximum Width	300 MM
Print	Water transfer film
RIP Software	Maintop6.1 FlexiPRINT Print Factory Hemo Driver
Power	AC110V+/- 10%、AC220V+/-10%、50/60+/HZ
Operating Environments	Temperature:20℃-35℃， Humidity:35%RH-65%RH
Dimensions of Printer(L x W x H)	L1785 x W790 x H1613mm
Dimensions of Packing（L x W x H)	L1880 x W 970 x H 740mm
Net Weight	120KG
Gross Weight	140KG
Printing Color	Full Color
Printing Technology	Water Transfer Printing/Advanced Technology
Cartridge capacity	500ml

Professional Features

图片13 拷贝

The all-in-one paper collection and release system is easy to install, the feeding is smoother, and it is not easy to go obliquely.

图片14 拷贝

Intelligent control board, can adjust the temperature of the nozzle and the temperature of the paper platform, adjust the suction wind.

图片15 拷贝

Fully closed and high moisturizing ink stack, provides guarantee for high-definition high-speed drawing of equipment.

Production process

1. Design the pictures and print the film

2. Transfer print slot for picture transfer printing

3. The transfer printing is completed, and the washer washes the activator of the surface

4. Rinsing is complete and dry

5. Finally, spray it with light oil

Printer

Transfer water tank

Washing machine

Drying cabinet

Spray varnish cabinet

Product application

The water transfer printing process is extensively used to decorate items that range from entire all-terrain vehicles and car dashboards, to small items like bike helmets or other automotive trim. Films can be applied to all types of substrates including plastic, fiberglass, wood, ceramics, and metal.

Dish-wooden

Helmets

Mask

Mobile phone case

Model car

Necklace

Plastic roller

Skateboard (3)

Special product

Teddy Brick

Tumbler

Turntable

faq

What Industries Use Water Transfer Printing?

In the past, you might have seen camouflage applied to a helmet or a gun stock. Vehicle interiors have used this type of printing to add a statement of design to steering wheels or rims. Today, industries such as manufacturing, engineering, and construction well as the automotive industry might use water transfer printing.

What Types of Patterns Can Be Done?

From woodgrain to camouflage to geometrical to carbon fiber, there is an extensive list of patterns and textures that have been used in water printing. Even cartoons have been water printed. Dashboards, entire all-terrain vehicles, and even small items like bike helmets have incorporated designs and patterns accomplished through water printing.

What Is the Process for Water Transfer Printing?

The pattern is printed on a water-soluble film. As the design is put in the water, the film slowly dissolves, leaving the ink to float on the surface of the water. The item about to be printed has gone through a process of coating with an adhesion promoter or primer.

Preparation Before Shipment

Install

Debug

Test

Inspect

Package

● 100% Inspection of Shipment

● One-Site Testing And Commissioning
