High Resolution UV Flatbed Printer for Industrial ApplicationsHigh Resolution UV Flatbed Printer with Negative Pressure System for Industrial Applications 1

High Resolution UV Flatbed Printer for Industrial ApplicationsHigh Resolution UV Flatbed Printer with Negative Pressure System for Industrial Applications

Model: ACU6090

Ink: UV ink

Print Format: 600*900mm

Net Weight: 225KG

Dimensions of Printer: 1600(L)*1690(M)*802(H) mm

Power: AC110V+/- 10%、AC220V+/-10%、50/60HZ

Operating Environments: Temperature:20℃-30℃，Humidity:35%RH-65%RH

Print Nozzle: Epson Print head i3200 U1

Print Accuracy/speed : 4pass:8㎡/hour

6pass:5㎡/hour

8pass:3㎡/hour

Color control: International standard ICC color control

Data interface: USB2.0/RJ45 Network cable interface

Software: Photoprint

Ink Supply system: Double negative pressure ink supply system

Inquiry

Write a Review

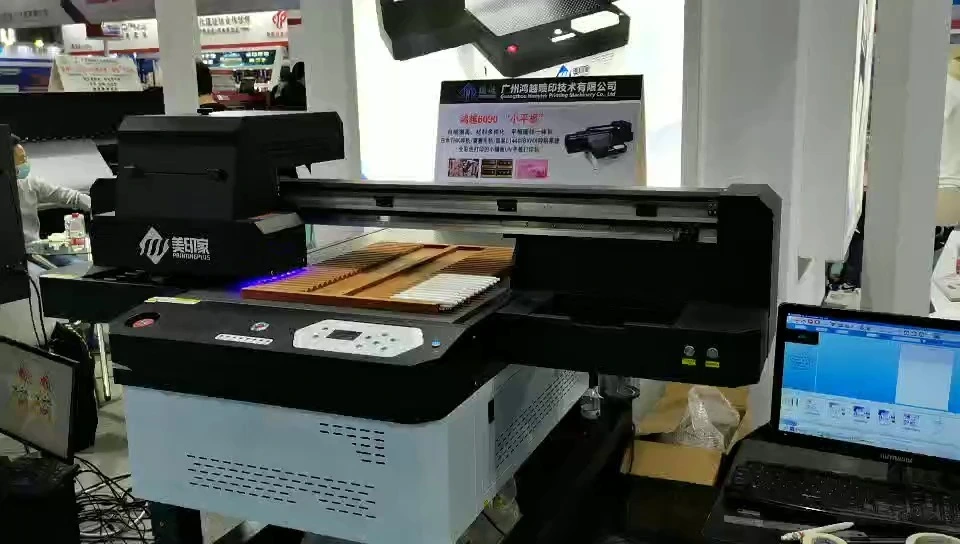

PRINTINGPLUS uV flatbed Machine Model ACU6090

Our High Resolution UV Flatbed Printer for Industrial Applications utilizes advanced digital inkjet printing technology with years of industry experience, guaranteeing precision and quality results for a wide range of industrial applications.

Gantry Milling Rack

The machine with high printing accuracy will choose to use an integral all-steel structure in the key load bearing parts, in order to release the stress in the steel itself and the stress in the cutting weld riveting, and at the same time do stress relief annealing processing. So as to ensure that the rack is used for more than ten years without deformation, the contact surface of the whole

body machine is maintained at the same level.

Double Guide Rail + Lead Screw Drive

body machine is maintained at the same level.

Suction Platform Area Independent Control

Platform Full Size:600*900MM

Front Area: 600*450MM

Independent ontrol switch and wind

Rear Area: 600*450MM

Independent control switch and wind

Printerhead maintenance - Moisturizing ink stack

Manual printerhead moisturizing ink stack

During short holidays or daily 3-5 days without using the

machine, you can manually move the trolley to the left ink

stack for moisturizing

Servo Integrated Motor

Motor, encoder and drive integrated

Excellent performance, low heat, low vibration

Servo parameter dip setting, simple and convenient

Compact structure, small size, easy to install

The driver is integrated with the motor, eliminating the connection cables between the motor and the driver, saving a lot of wiring labor, reducing electromagnetic interference between the wires, reducing the reliability problems and maintenance costs caused by a large number of connectors and unreliable connections between the wires, and reducing the installation space.

Water Cooling Lamp Cure

Water cooling system refers to the use of cooling water to cool the temperature of the LED lamp, its principle is to use water (or antifreeze) as a cooling medium to take away the heat of

high temperature parts.

Good cooling effect, uniform cooling, reliable operation, not affected by the environment, low noise.

Mercury free, safer, more environmentally friendly and energy efficient

Recycling coolant and rapid heat dissipating COB ensures longer lifespanof the light source.

The light source is suitable for many curing base materials, like the softrigid, absorbent and non- absorbent materials Don’ t need to dealwith the heat radiation of thermosensitive base material

The UV LED light source is narrow band, which only give out useful lightand no harmful UV light. What’s more, as cold light source, the componentshave very low thermal radiation which cut much heat during curing process

FAQ

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

What is the standard of package?

wooden case or special package according to customer requirement.

Do you accept OEM business?

Yes, we are OEM supplier.

What certifications does the DTF Transfer Printer have

The DTF Transfer Printer has CCC, FCC, and CE certifications

Where is the DTF Transfer Printer manufactured?

The DTF Transfer Printer is manufactured in China.
